1. Design Statement

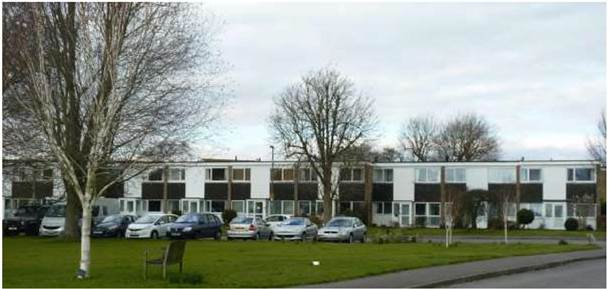

Maisemore Gardens offers a remarkable combination of features: a real community, a stunning coastal location and interesting properties that offer modern, spacious accommodation.

Over time the original design elements of the estate have been diluted and the challenge now is to regain a more unified appearance. The COM believe that this is essential to maintain the structure of the estate, and should be supported vigorously.

This document has been produced to inform and encouraged residents to maintain and improve their properties in keeping with the original design ethos and terms of the lease.

A collegiate and collaborative approach will create an atmosphere where making the right choices in window, doors, paint colours and glazing etc. will be a benefit to the whe community, maintaining and increasing the value of the proper

2. Design Protocol

To achieve the objective of maintaining the overall standardised design of the properties, it is necessary to establish what is recognised as the ‘original’ design, and what is acceptable as a modern equivalent based on sustainability, safety and modern design practice.

2.1 Windows

1. The original windows were minimalist sliding or fixed panes within a wooden framework. This design has now been superceded by the use of modern uPVC frames holding hinged double glazed panes.

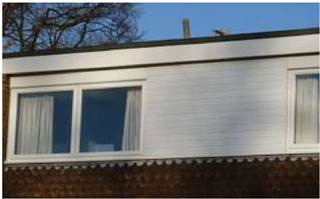

2.  First floor windows should be of identical size and function, have minimal framing and large panes as shown below.

3. Ground floor windows vary depending on the type of house.

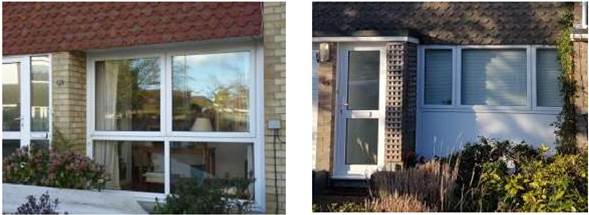

Houses with a large window to the right of the porch should follow the basic design shown below left, a centrally divided upper section and a lower section below the glazing bar which can be glazed or panelled in white for security.

Houses with smaller windows to either side of the door should follow the line of the standard door whereby the base of the window is level with the top of the door glazing bar.

2.2 Fascia Boards

Fascia boards were originally of plain render. When required these should be replaced with white plastic panels, running horizontally, approximately 6” deep, as shown below.

2.3 Tiles

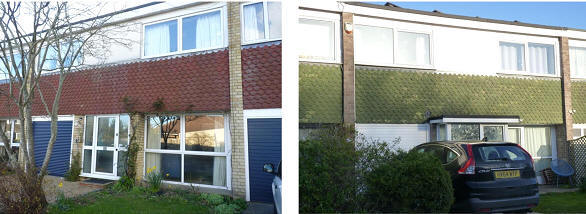

The original hung tiles must be retained in the appropriate colour for each terrace, as  shown below.

2.4 Front Door

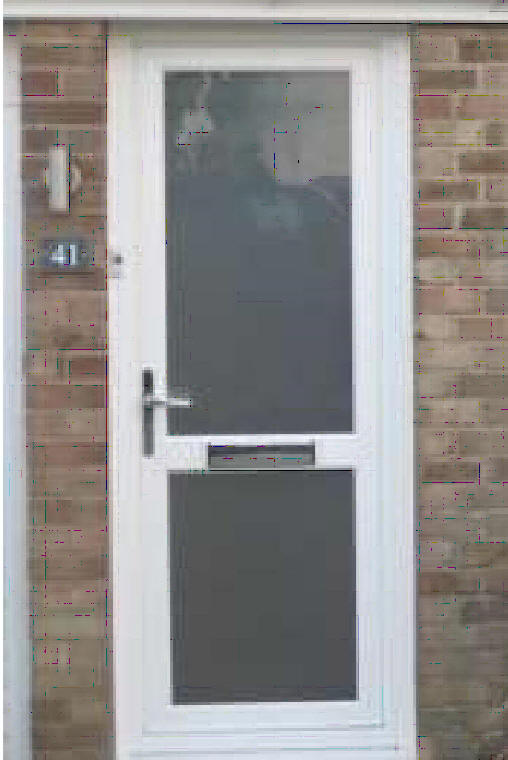

All properties were originally built with front doors of one design. These were plain glazed, with a structural cross bar at a specific height and the option of replacing the lower panel with a plain white blanking sheet.  The modern replacement should retain the basic design as shown right. Modern materials such as white uPVC are  acceptable, glazing can be plain or translucent but any    pattern in the glass should be subtle.



2.5 Porch

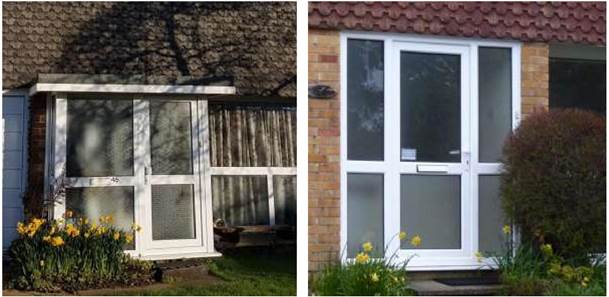

Where porches are present they contain one pane with a glazing bar at the standard height the standard door always to the right as shown below left. The original wood construction can be replaced with white uPVC structures with plain or translucent glazing, the lower panel can be replaced with a plain white panel for security.

Some properties have internal porches whereby the door is central with windows either side. These have a glazing bar running across the windows as a continuation of the door bar, see below right. All designs should be appropriate for the property type within the terrace in which the property is located.

2.6 Garage Doors

Garage doors were originally paneled and glazed at the top. Many of these have been replaced with a variety of up and over designs and more recently with roller doors. It is recognised that a standard design does not exist. Replacement doors should have narrow horizontal ribs and be of a minimalist un-glazed design, retaining the standard colour for the terrace. Doors with horizontal ribs which are divided vertically and are side hinged are approved.

A colour guide is available on the Maisemore Gardens website.

Changes to these standard colours can only be made when all the owners in a terrace agree to implementing the change.

Changes to these standard colours can only be made when all the owners in a terrace agree to implementing the change.

2.7 Roofs

A consistent roofline should be maintained along a complete terrace. This retains the original minimalist look of the buildings and avoids potential drainage problems caused by changes in roof level. Unless a complete terrace agrees to change, replacement roofs should be of the ‘cold’ type with insulation under the roof boards.

2.8 Gutters and downpipes





The original flat roof design includes hidden gutters, set back from the roof edge, that fed rain water into internal down pipes which were linked into the estate’s drainage system. These should be retained. New roofing felt must not reduce the size of the openings into the original downpipes.

Where the efficiency of this system has decreased over the years, the installation of external hopper and downpipes, which must be connected to the estate’s surface water system, is an accepted practice. Not every house will need this and an excessive number of external downpipes is discouraged. (They only replace the internal down pipe).

Installation of external gutters at the front of houses is not acceptable.

2.9 Structural internal changes

The COM must be informed of any planned structural modifications to the internal framework and party walls of a property. This is to ensure that any potential impact on a neighbouring property (including party wall implications) is understood and that the integrity of the building is not compromised.

2.10 Other equipment (solar panels, aerials...)

Any equipment attached to the house (including the roof) visible from the road has an impact on the estate’s overall appearance. Such equipment should be placed as far back from the road as practical to minimise the visual impact.

2.11 Front Gardens and Drives

The original design of the estate was to provide an open and undivided vista, uninterrupted by any object or structure. This included cars, caravans (motorised or not), boats, sheds, wheelie bins etc. As the majority of cars have increased in size, the COM accepts that it is preferable to keep cars on a drive rather than the highway. Trees and shrubs in front gardens should be low and under control to maintain this open feeling.

Proposed changes to the layout of driveways must be submitted for consideration by the Planning Group and approval by the CoM using the correct process. Emphasis will be given to maintaining as much garden area as possible, drainage requirements, and the design and materials choices. Materials should be in keeping with the original design and colour; tarmac and large areas of block paving are discouraged. Increases in driveway width which lead to a loss of garden area should be modest. No extension will be authorized which increases the driveway width past the outer corner of the porch.

2.12 Rear Gardens

Rear gardens are the only area within the estate where the addition of buildings or extensions may be considered. Approval by the COM and where appropriate, Havant Council Planning, is required. Where replacement fencing is planned, approval from neighbours should be sought.

3. Procedure and Process for Alterations

The Design Protocol and these notes on Procedure have been complied to provide house owners and the COM with a structured process to ensure that the conditions of the lease are met when alterations are carried out.

The lease conditions are in place to:

1. Ensure that any change or addition to a dwelling does not or may not cause any nuisance, annoyance or inconvenience to any member.

2. That the overall uniform façade of the estate is maintained, as far as is

3. practical, as was originally designed.

4. That the integrity of any adjoining house is not compromised by any planned change
